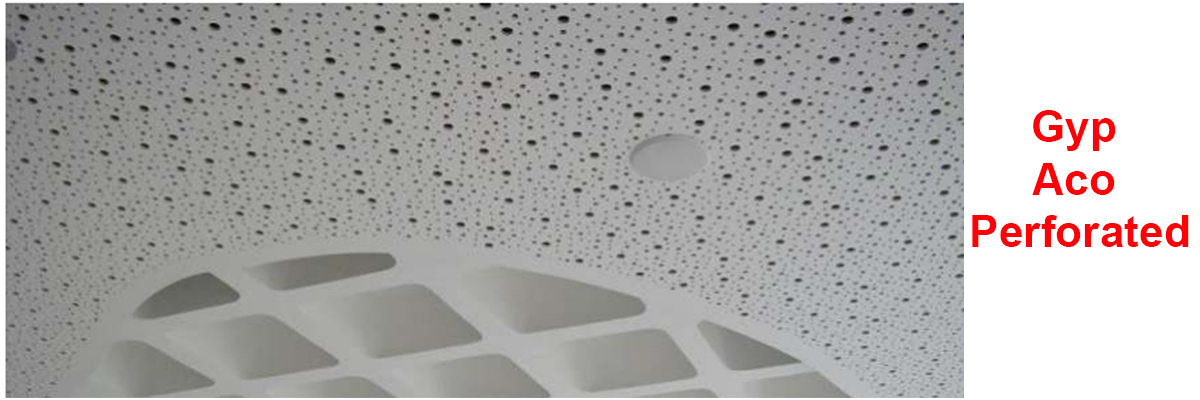

Gyp Aco Perforated
Product Description
Earcons acoustic perforated gypsum board is designed on the basis of helholtz resonance theorem, After perforated, the holes, board and the wall make up of many resonant cavities, when air molecules pass the holes, the resonant cavities will consume large quantities of sound energy.
Earcons perforated gypsum board is one of the best sound absorption products, it ie widely used in Auditorium, office, cinema, church, hospital. School and so on.
Product feature
1. Acoustic perforated gypsum board
2. Light weight
3. High edge rigidity
4. Strong nail pull resistance
5. Smoothness 6. Green products
Technical Performance
Surface Spread - Class l - BS 476 Part 7 Specific Optical Density of Smoke - Flaming Exposure 26.28 Dm (Corr) - ASTM E66 Thermal Conductivity - 0.08 Wm/k - IS 3346 Non-combustibility - Mass loss 53% @ 750 oC - ISO 1182 Ignitibility - 'P' - BS 476 Part 5 Fire Propagation Index - 5.17 - BS 476 Part 6
Properties
| Thickness : | 12 mm |
| Edge : | Square |
| Sizes : | 595x595/1200 |
| Sound Absorbtion : | Upto 0.80 |
| Density : | 800 Kg/m3 |
| Fire Class : | 1 & P |
| Climate (RH) : | 70 |
| Weight : | 6.5-7.6 Kg/m2 |
| K-Value : | 0.1w/m k |
| Light Reflection : | 12-18% |
Application
Auditorium, Theaters, Recording studio, Music hall, Stadium, Lecture Hall, Hotel, Museum, Library, Banks, Courts, Multi-function hall, Meeting rooms, Business office ,Conference Hall, Advanced villa or private living room and other public places for improvement of the environment.
