Cilia Stuff
Product Features
Earcons Cilia Magnesite bonded wood wool acoustic panel (fibre width 0.5-1 mm). Exquisite surface structure, building biology recommended. Earcons Cilia Magnesite Wood Wool extremely strong just like the beehive-type porous structure, which achieve excellent sound and heat insulation. Therefore, rendering architects with the best solution for health, ecology ,heat and sound absorption purposes.
The Earcons Cilia Stuff Magnesite wood wool panels are available in various colors. Choices of color scheme custom colors and can easily be without losing their acoustical efficiency. Ranges Panels are made from factory finished panels.
Environment Friendly
Earcons Cilia Stuff Magnesite Wood Wool fibere are bonded with magnesite. Slabs of bonded wood wool are considered environmentally friendly construction and insulation materials because they do not contain organic binders.
Technical Peformance
Surface Spread- Class 1 - BS 476 Part 7 Specific optical density of smoke- Flaming Exposure 26.28 Dm (Corr)-ASTM E 66 Thermal conductivity- 0.08Wm/k- IS 3346 Non-combustibility- Mass loss 53% @ 750°C - ISO 1182 ignitibility- 'P' - BS 476 Part 5 Fire propagation Index-5.17- BS 476 Part 6 Properties

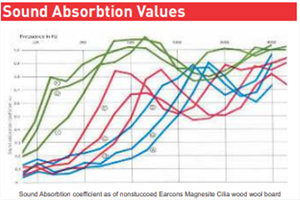

Sound Absorbtion Values
Properties
| Thickness : | 15/20/25/50 mm |
| Edge : | Square, Groove |
| Sizes : | 600/1200/2400 |
| Sound Absorbtion : | Up to 0.95 |
| Density : | 400 Kg/m3 |
| Fire Class : | l & P |
| Climate : | 50, 90 |
| Weight : | 7-20 Kg/m2 |
| Surface Spread : | Class l - BS 476 Part 7 |
| Specific Optical Density of Smoke : | Flaming Exposure 26.28 Dm (Corr) - ASTM E66 |
| Thermal Conductivity : | 0.08 Wm/k - IS 3346 |
| Non-combustibility : | Mass loss 53% @ 750 oC - ISO 1182 |
| Ignitibility : | 'P' - BS 476 Part 5 |
| Fire Propagation Index : | 5.17 - BS 476 Part 6
|
High Durability
Earcons Cilia Stuff Magnesite wood wool acoustic panels comprise of Magnesite-bonded wood wool, which is robust and durable. Owing to the composition of wood and magnesite, this product can absorb and give off moisture. Earcons Cilia Stuff Magnesite wood wool is therefore very suitable for cladding ceilings and walls in high acoustical areas such as Auditorium, Multiplexes, Recording studio, Media station, Music hall.
Warranty
12 years limited warranty on the assembled system when installed to Earcons specifications.
Installation:
The Installation Of Earcons Cilia Stuff Magnesite Wood Wool Acoustic Panels Is Part Of Interior Decorating And May Only Be Carried Out Under Controlled Humidity And Temperature Conditions.
Application
Auditorium, Multiplexes, Home-Theaters, Airports, Recording studio, Television station, Music hall, Large entertainment city, Hotels, Hospitals, Museum, Indoor Stadiums, Banquet Hall, Library, Banks, Courts, Multi-function hall, Meeting rooms, Business office, Lecture Halls, Advanced villa, Industrial Spaces, Retail Outlets and other public places for improvement of the environment.
