Earcons Acoustic Baffles

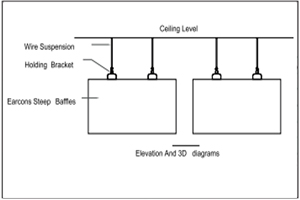

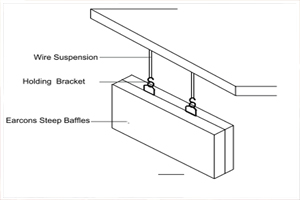

Earcons Acoustic Baffles are used to reduce noise levels in industrial, recreational, and other high noise areas, and are suspended from wires or from the structures. Actual room noise reduction can be up to 10 to 15 dB depending on the configuration of the space and the absorption present before installing baffles. Earcons Acoustic Baffles are having good noise absorbing material with 0.85 NRC and are available in fine glass wool and polyester as the core element. Earcons Acoustic baffles design categorized in to Flock Baffles and Steep Baffl.

• High acoustic performance
• Can be installed as individually or in groups • High acoustic performance
• Elegant Appearance
• GREEN concept production
• Comply with ASTM Standards
• Good Fire Characteristics as per ASTM References
• Good RH value

Acoustic Steep Baffles

Steep Baffle designed to reduce sound reverberation and provide a more peaceful environment with its steep structure. These baffles are wrapped with a soft synthetic suede fabric, and their strong soundabsorbing performance, durability and eye pleasing appearance are unmistakable. These baffle products are Class 1 fire rated and offer high sound absorption ratings, NRC .80 The Acoustic hanging baffles are constructed with grommets, which allow for a quick and easy installation.

Finish :	15/20/25/50 mm
Thickness :	25 MM, 50 MM
Sound Absorption (NRC) :	Up to 0.80
Design :	Rectangular
Core :	Polyester / Glassfibre
Density :	100 Kg/M3
Fire Class :	Class A
Type :	Non Grid
Sizes :	1200 x 600; 1800 x 600

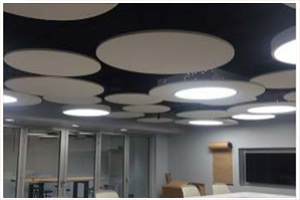

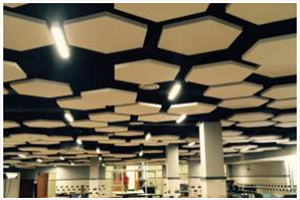

Earcons Flock Baffles are engineered acoustical products with an all-round scrim facing, finished with a new, factory applied, high white paint finish giving exceptional levels of acoustic performance and light reflectance. Ideal for noisy environments where traditional acoustic ceilings are either not possible for structural design reasons, or cannot provide the high level of performance required, Acoustic Baffles provide an economic solution with an attractive linear visual to enhance modern building interiors.

Specifications

Finish :	Fabric Finish
Thickness :	25 MM, 50 MM

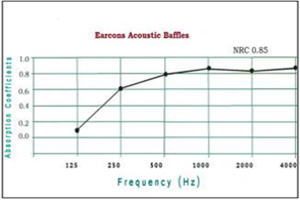

Sound Absorption (NRC) :	Up to 0.85
Design :	Circular or poly edges
Core :	Polyester / Glassfibre
Density :	100 Kg/M3
Fire Class :	Class A
Type :	Non Grid

Standards and references

Earcons Acoustic Baffles can significantly reduce background noise levels and reverberation times within spaces and enhance speech intelligibility. Acoustic Standards and Tests are as per ASTM C423. Surface burning charecteristics complies with ASTM E-84
